Description

Product Features:
1. Build-in RF433 receiver for multiple control modes:
Controlled by 1/2/6/16 channel hands-held RF433 remote emitter, or 1/2 channels wall-held RF433 remote transmitter;
Smart Life / Tuya App remote control. Voice Control is available
Multiple control modes work without any interference.

2. Wide application with ZigBee protocol built-in:
Fully new solution by Zigbee technology is designed to meet the high automation requirement for luxury villas and hotels by the 100M stable signal range;
A ZigBee hub is required for connecting with the motor for the normal and successful control of connected devices;
Powerful enough to work with various motorized roller blinds,roller shutter,wooden venetian blinds,and even motorized clothes pole.

3.Multiple 6 limits setting by remote:
Support setting one Upper/Lower limit and 4 additional limit positions via Remote;
Simplify your operation in different locations;
Auto correct limit after power off;environmental protection and energy saving.

4.Smart Life/Tuya APP Remote Control:
Control the motor on your smart phone anytime from anywhere;
Compatible with Alexa Echo and Google Home for easy voice control;
Device share to your family members for added convenience to control devices together;
Timer your own schedule to set the opening/closing of the roller blinds shutter at a precise time.

5.Easy DIY Installation:
No installers or a degree in rocket-science required;
Easily install and setup DC Tubular Motor in minutes with the installation manual;
Ultra-quiet design supports to lower noise to 40dB;
Stop at obstacle to protect the device and users from damage.

Parameter:
Item Name: Tubular Roller Blinds Motor
Item No.: AM25-1.2/30-ES-EZ
Motor Diameter: 25mm
Driving Tube Diameter: 38mm
Voltage: DC7.4V
Rated Current: 900mA
Rated Torque: 1.2N.m
Rated Speed: 30 rpm
Smart Control App: Smart Life/ Tuya
Voice Control: with Amazon Alexa Echo/ Google Home

Packing List:
Tubular Motor *1 + Basic Kit*1 +Wall Bracket *2 + Idler*1+English Manual*1

Q&A:
1.Q: May I use my own remote control to control the motor?
A: No, our DC tubular is designed with our own RF433 remote only.

2. Q: Can I control the curtains if I am not at home?
A: Yes, you can remotely control your curtains and conveniently open/close them anywhere,anytime via Tuya Smart Life App.

3. Q: May I share the control with family members to control the blinds together?
A: Yes,you may. For our smart motor supports one mobile phone to control multiple devices or multiple mobile phones to control one device.

4. Q: Does this work with Google Home or Amazon Alexa?
A: Yes,it does.For our smart switch is compatible with Alexa and Google Home.

5. Q: Is this built-in ZigBee module or WiFi module?
A: This motor is a ZigBee version that requires one ZigBee hub connected for normal control via App.

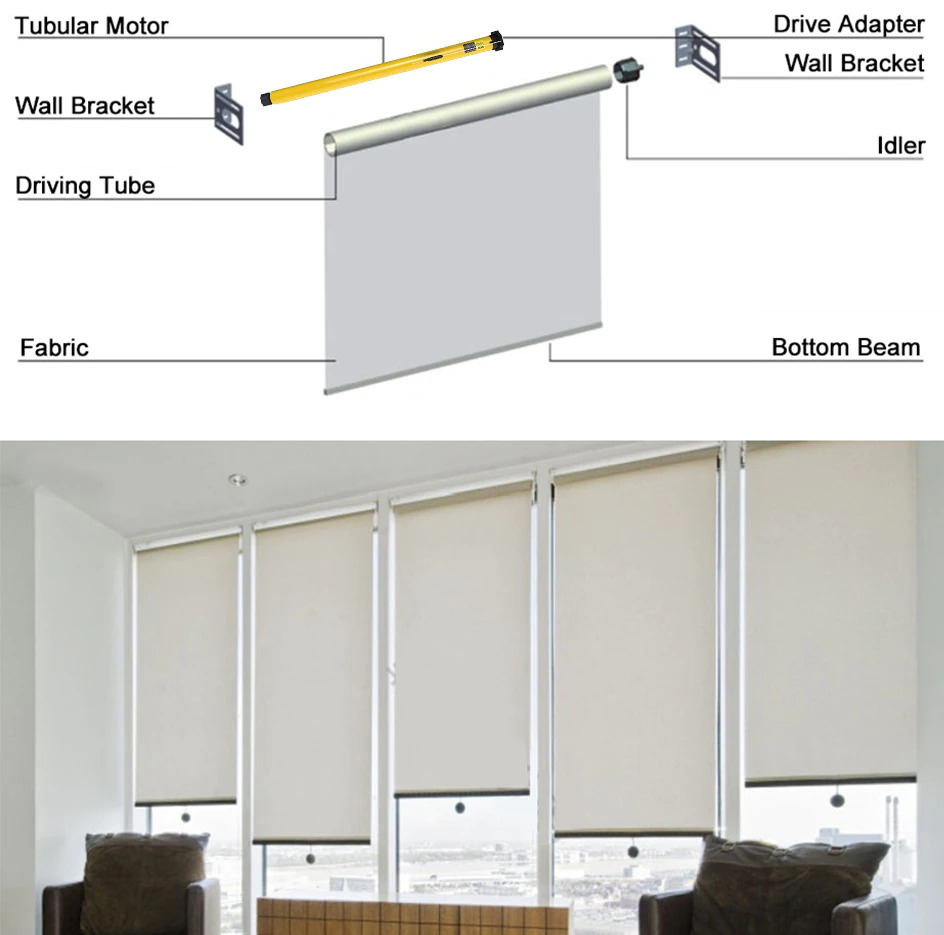

Installation Method

1. Tubular Motor	2. Drive Adapter (included)	3. Wall Bracket (included)	4. Tube ( Can buy in our shop)
6. Idler (included)	7. Fabric (not included)	8. Bottom Beam (not included)

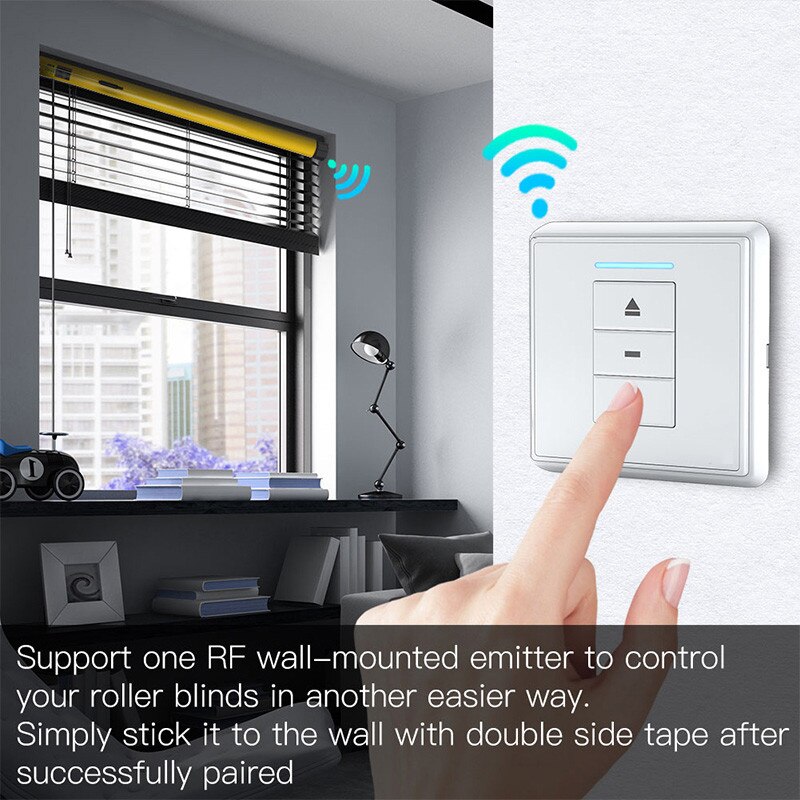

RF433 Wireless Control
Support one RF Wall mounted emitter to control your roller blind in easier way
Simply click it on the wall with double side tape after after successfully paired

Hand-helo RF Emitter
Put into the remote handle for easier use
The Remote is not included in the package, if need, choose when place order

Multiple Control Modes without Interference
RF protable remote control | RF wall remote control
Smart Life Tuya App control | Hands-free Voice Control

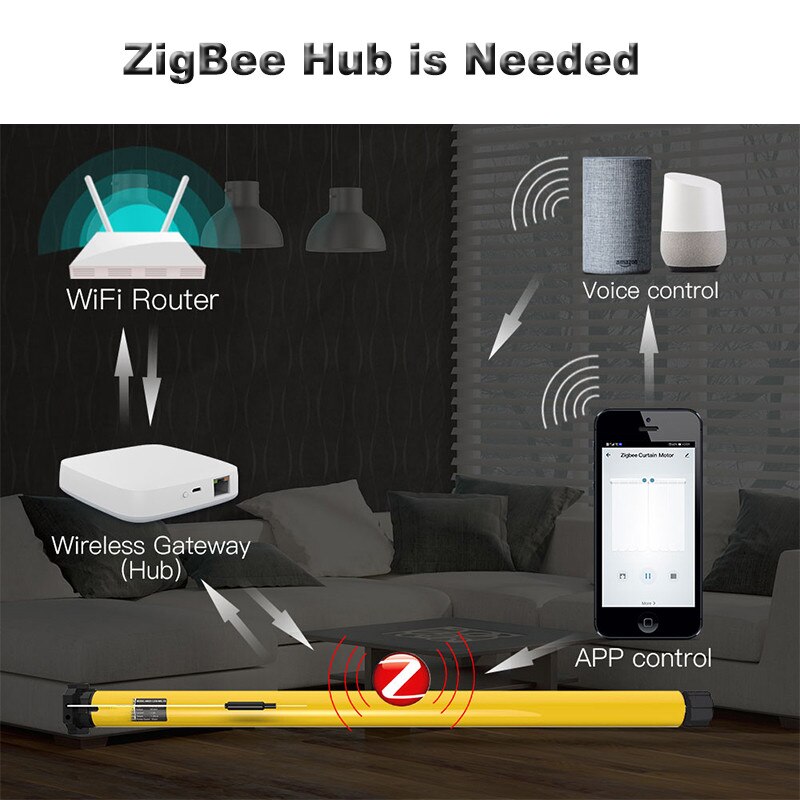

ZigBee Hub is Required for Normal Use

DC Battery Powered
7.4V DC build in lithium battery motor with low power consumption
Fully charged battery can last half a year under motor working once up and down everyday

Multi- Channel RF Remote for Choice

A. Hand held RF Transmitter

1 channel

2 channels

6 channels

16 channels

B. Wall Mounted Crystal RF Transmitter

1 Channel

2 Channel

Wide Application
Roller shades | Roller blinds | Projection screen | Roller shutter

Statement of Setting Limit
The up/ down limit must be set before the third limit
The third limit will be deleted automatically when the up/dow limit is deleted
Up limit setting | Third position limit setting | Down limit setting

Family Sharing
Share the smart curtain motor to your family members to share the convenience together
Support one mobile phone to control multiple devices or multiple mobile phones to control one device

Timmer Function
Open and close your curtain as your own daily timetable
No worry about forgetting to open or close

Hands-free Voice Control
work with Amazon Alexa | Google Assistant

Smart Life Tuya App Wireless Remote Control
Take full control of home curtains anytime from anywhere

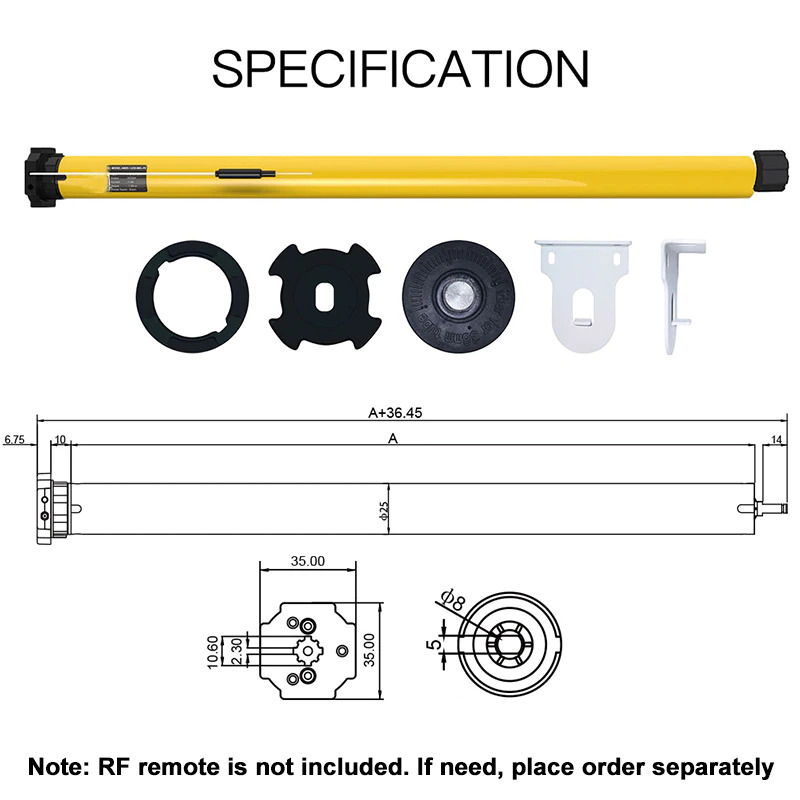

Specification
