Description
Features:
3.0MP HD resolution, clear and fine images;
Support 2D/3D noise reduction, digital wide dynamic;
Advanced H.265AI/H.265+ (Compatible with H.265) video compression, super low rate, high definition quality of image;
Professional anti-lightning, conform to GB/T17626.5 and IEC61000-4-5。
Support ONVIF; access third party;
Support various mobile monitoring (iPhone, Android);
Provide web、VMS、center platform management software MYEYE.
Support cloud technology, easy to achieve network penetration, for in-line and alarm information pushed
Parameters:
|
Model |
3MP camera module |
|
System structure |
Embedded RTOS, dual-core 32bit DSP(XM535AI), pure hard compression , watch dog |
|
Sensor |
1/2.7″ SC3235 CMOS sensor ,color 0.1Lux@F1.2,black/white 0.01Lux@F1.2 |
|
Video compression |
H.265AI/H.265+ (Compatible with H.265), support dual stream, AVI; 0.1M~10Mpbs variable; 1~30f/s variable |
|
Image output |
Main stream: 2*1@5fps (Only H.265X encoding is supported )；1920*1@25fps; sub-stream: 704*576@25fps; |
|
Shutter |
1/50(1/60)s to 1/10,000s |
|
Day and night |
Support IR-CUT |
|
Noise reduction |
Support 2D/3D |
|
Wide dynamic |
Support digital |
|
Audio compression |
G.711,support bidirectional talk, audio& video synchronization |
|
Network interface |
1*RJ45 10/100M adaptive Ethernet port; support RTSP/FTP/DHCP/NTP/UPnP etc. |
|
Other function |
Support WEB, OSD, live video transmission, motion detect and IO alarm, support JPEG capture；united remote client monitoring software、MYEYE. |
|
ONVIF |
Support |
|
Mobile monitoring |
Support multiple mobile monitoring（IOS，Android） |
|
Power |
DC12V/2A input, power consumption:≤8W, |
|
Other |
Support POE power supply (optional) |
|
IR range |

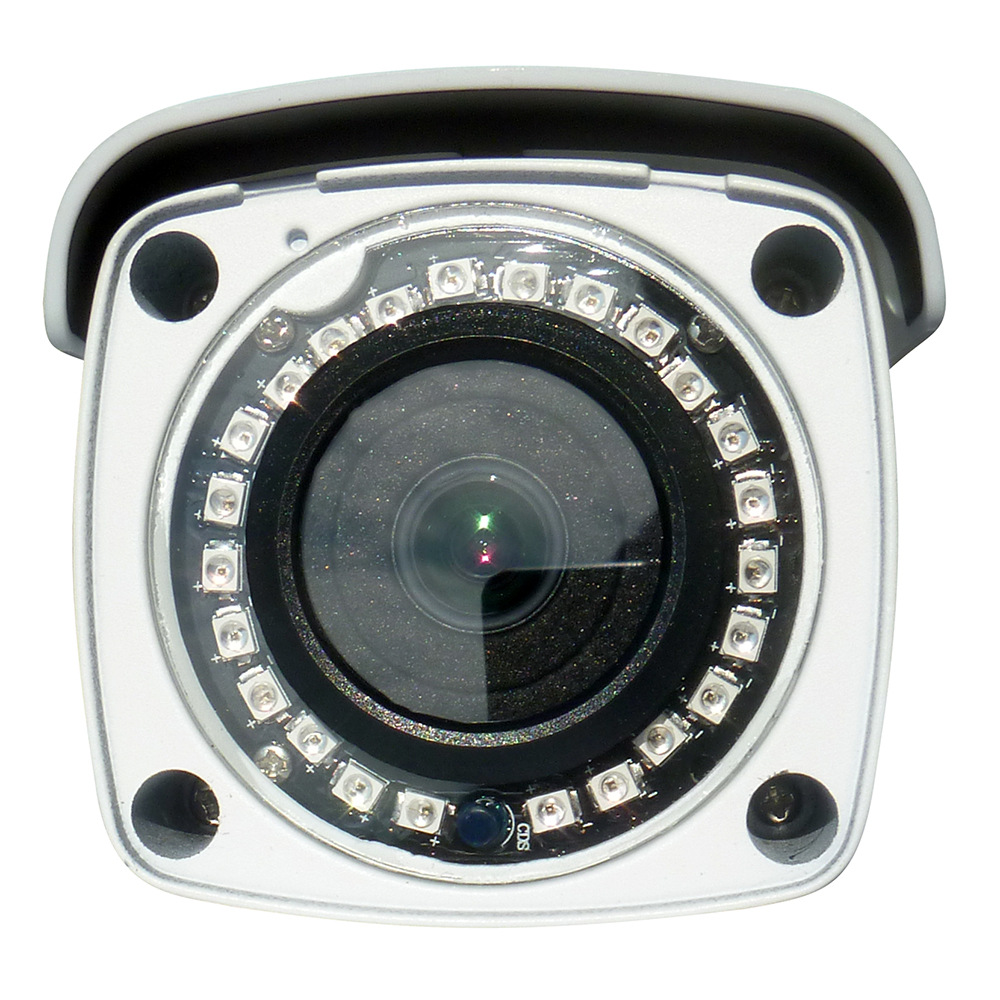

24 array LED lamps :20-30 meters |
|
Material |
Aluminum alloy |
|
Ingress Protection |
IP67 |
|
Weight |
Around 400g |
|
Dimension |
68mm*62mm*193mm |
